小型 三檔 臥式撥動開關(guān)(SMT,1P2T)
MK-12D70-E規(guī)格參數(shù)
額定值:0.3A 6VDC
功能:1P2T
使用功率:1.8w
接觸電阻:70 mΩ
絕緣電阻:100 MΩ
切換類別:NS(Non-shorting)
抵抗電壓:AC 500V for 1 minute
使用壽命:每分鐘20-30的頻率操作10000次
行程:1.5mm
基本尺寸:8.8mm(L)*3.0mm(W)*2.0mm(H)
操作柄:2.0mm(H)*1.5mm(W)
端子類型:SMT貼片
端子腳間距:2.0mm
MK-12D70-E系列選項
| MODEL NO. | GROUND TERMINAL | SOURCE RETURN FUNCTION | TERMINAL |
| MK-12D70-E | WITH | NO | SMT |
| MK-12D70-EN | WITHOUT | NO | SMT |
| MK-12D70-ER | WITH | YES | SMT |
| MK-12D70-ERN | WITHOUT | YES | SMT |

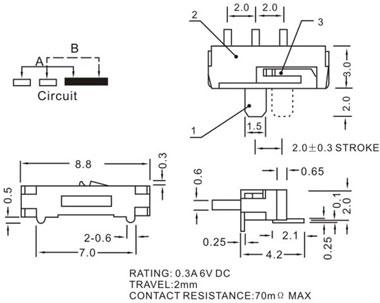

MK-12D70-E系列基本尺寸：
