多檔旋轉開關(插線式,CUL,CQC)
規格參數：
規格：3A 250VAC / 6A 125VAC
材質：塑膠底座、塑膠上殼
Rating：3A 250VAC / 6A 125VAC
Material：Plastic Up Shell/Plastic Base
安規認證：
| 功能（插線式） Function(Push-in terminals) |
|
| ZE-206-112C | OFF,ON |
| ZE-206-113C-03 | OFF,L-1,L-2 |
| ZE-206-113C-01 | OFF,L-1,L1-2 |
| ZE-206-113C-02 | OFF,L-1-3,L-1-2 |
| ZE-206-114C-03 | OFF,L-1,L-2,L-3 |
| ZE-206-114C-01 | OFF,L-1,L-1-2,L-3 |
| ZE-206-114C-02 | OFF,L-1-3,L-1-2,L-2-3 |
| ZE-206-114A-05 | OFF,L-2,L-1-2,L-2-3 |
| ZE-206-114A-07 | OFF,L-1,L-2,L-3 |
| ZE-206-115A-11 | OFF,L-2,L-1-2,L-2-3,L-1-2-3 |
| ZE-206-114B-04 | OFF,L-1,L-2,L-3 |
| ZE-206-114B-11A | OFF,L-2,L-1-2,L1-2-3 |
| ZE-206-114B-11B | OFF,L-2,L-2-3,L1-2-3 |

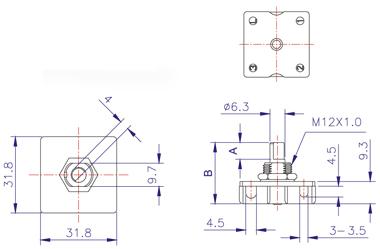

ZE20611外形尺寸：
| TYPE | A | B |
| ZE-206-11 | 9.0 | 27.0 |
| ZE-206-11 | 7.0 | 25.5 |
