2/3/4/5/6/7檔旋轉開關(焊接端子,ENEC,CQC,CUL,CSA)
規格參數：
Single/double pole, Multi-position
Ratings
30A 1 HP 120VAC，2HP 240VAC（L)
25A 1 HP 120VAC. 2HP 240VAC (2)
8A 1/3HP 120-240VAC（1.3）T75
for DYU-3/4/5/8/13
8A 1/3HP 120-240VAC T65
for DYU-W-05 DYU-29/30/31/34
20A 120-240VAC
1HP120VAC，2HP 240VAC T65
for DYU-W-06 DYU-20/21/38
8A 120-240VAC T65 for DYU-22
21A 120-240VAC T65 for DYU-23/26/35
16A120-240VAC
1HP120VAC,2HP 240VAC T65
for DYU-24/25/33
1A 250VAC T65 for DYU-27
1A120-240VAC（4-3，4-5)
21A120-240VAC（1-2）T65
for DYU-36
25A120-240VAC
1HP120VAC，2HP 240VAC T65
for DYU-39
8(8)A 250VAC 25E3µ
安規認證：

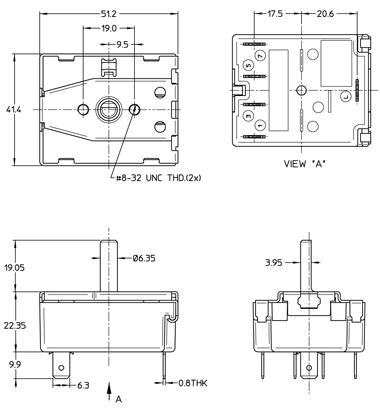

DYU外形尺寸：
