2/3/4檔旋轉開關(插線式)
規(guī)格參數：
規(guī)格：3A 250VAC / 6A 125VAC/13A 125VAC(H)
材質：電木底座、金屬上殼
Rating：3A 250VAC / 6A 125VAC/13A 125VAC(H)
Material：Phenolic Base/Metal Up Shell
安規(guī)認證：
| 功能（插線式） Function(Push-in terminals) |
|
| ZE-206M-122C | OFF,ON |
| ZE-206M-123C-03 | OFF,L-1,L-2 |
| ZE-206M-124C-01 | OFF,L-1,L-1-2,L-3 |
| ZE-206M-124C-06 | OFF,L-1-3,L-1-2,L-2-3 |
| ZE-206M-124C-08 | OFF,L-1,L-2,L-3 |
| ZE-206M-124A-07 | OFF,L-1,L-2,L-3 |
| ZE-206M-124A-05 | OFF,L-2,L-1-2,L-2-3 |
| ZE-206M-124B-10 | OFF,L-2,L-1-2,L-1-2-3 |
| ZE-206M-224B-11 | OFF,L-2,L-2-3,L-1-2-3 |

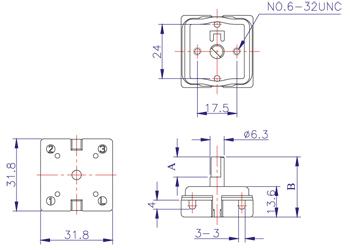

ZE206M12外形尺寸：
