2/3/4/5檔旋轉開關(插線式,CUL,CQC)
規格參數：
規格：3A 250VAC / 6A 125VAC
材質：塑膠底座、塑膠上殼
Rating：3A 250VAC / 6A 125VAC
Material：Plastic Up Shell/Plastic Base
安規認證：
| 功能（插線式） Function(Push-in terminals) |
|
| ZE-206-122C | OFF,ON |
| ZE-206-123C-03 | OFF,L-1,L-2 |
| ZE-206-123C-01 | OFF,L-1,L1-2 |
| ZE-206-123C-02 | OFF,L-1-3,L-1-2 |
| ZE-206-124C-03 | OFF,L-1,L-2,L-3 |
| ZE-206-124C-01 | OFF,L-1,L-1-2,L-3 |
| ZE-206-124C-02 | OFF,L-1-3,L-1-2,L-2-3 |
| ZE-206-124A-05 | OFF,L-2,L-1-2,L-2-3 |
| ZE-206-124A-07 | OFF,L-1,L-2,L-3 |
| ZE-206-125A-11 | OFF,L-2,L-1-2,L-2-3,L-1-2-3 |
| ZE-206-124B-04 | OFF,L-1,L-2,L-3 |
| ZE-206-124B-11A | OFF,L-2,L-1-2,L1-2-3 |
| ZE-206-124B-11B | OFF,L-2,L-2-3,L1-2-3 |

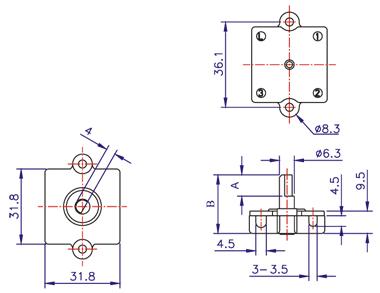

ZE20612外形尺寸：
| TYPE | A | B |
| ZE-206-12 | 7.8 | 25.8 |
| ZE-206-12 | 7.5 | 25.4 |
