10位旋轉編碼開關 實碼 貼片型 螺絲刀操作
規格參數
最大額定值 : 50VDC,100mA
接觸電阻: 100mΩ Max.
絕緣電阻: 100VDC-1000MA Min.
絕緣耐壓 : 250VAC-1分種
扭力: 40~200gf.cm
總旋轉角度 : 360° (10STEPS)
壽命: 10,000次
操作柄類型:Type1,螺絲刀操作
編碼數:10位
編碼類型:實碼
端子類型:SMT(貼片)

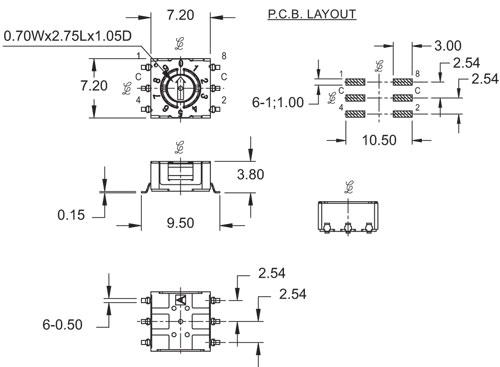

RSC-1ARM外形尺寸：
RSC-1ARM線路圖
| CODE | ||||||
| C | 1 | 2 | 4 | 8 | ||
|
POSITIONS |
0 | ● | ||||
| 1 | ● | ● | ||||
| 2 | ● | ● | ||||
| 3 | ● | ● | ● | |||
| 4 | ● | ● | ||||
| 5 | ● | ● | ● | |||
| 6 | ● | ● | ● | |||
| 7 | ● | ● | ● | ● | ||
| 8 | ● | ● | ||||
| 9 | ● | ● | ● | |||
